Navistream

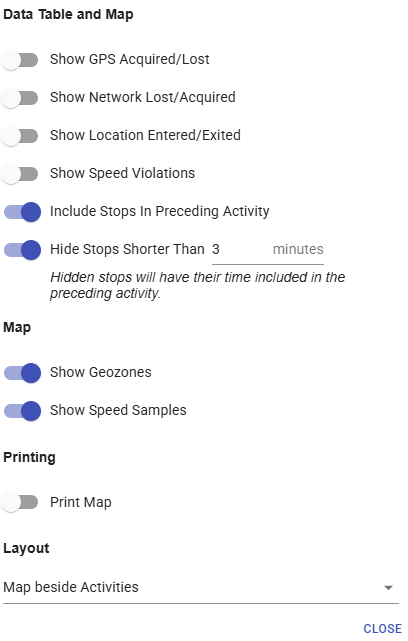

When viewing a Shift Detail Report, you may see an icon on the right side of the page above the map:

Clicking this button gives you some additional features and display options so that you can view additional advanced data on the map.

• Show GPS Acquired/Lost
  If toggled on, any time the Navistream tablet loses or acquires a GPS signal will be shown in the activity details after pressing the dropdown arrow.


• Show Network Lost/Acquired
  If toggled on, any time the Navistream tablet loses or acquires a cellular signal will be shown in the activity details after pressing the dropdown arrow.


• Show Location Entered/Exited
  If toggled on, any time the driver's vehicle enters or exits a Geozone will be shown in the activity details after pressing the dropdown arrow. This will also include the speed limit of the Geozone if applicable and the average speed of the vehicle while it was in that Geozone.


• Show Speed Violations
  If toggled on, any time the driver triggers a speed violation it will shown in the activity details after pressing the dropdown arrow.


• Include Stops in Preceding Activity
  If toggled on, any changes of duty status not attributed to an activity will be rolled up into the previous activity time.


• Hide stops shorter than x minutes
  If toggled on, and a value entered, we will hide the stops listed above that are less than the value entered.


• Show Geozones
  If toggled on, the Geozones will show on the map just as they do in Fleet Tracking


• Show Speed Samples
  If toggled on, speed sampled events can be viewed by a user by zooming into the driving activity on the map and hovering over the larger, outlined arrows.


• Print Map
  If toggled on, the current map will be included when printing the reporting using the Print button at the top of the report page.


• Layout
  Allows the user to change the layout of the map and activities on this page. You can set the map to show beside, or beneath the activities table.
