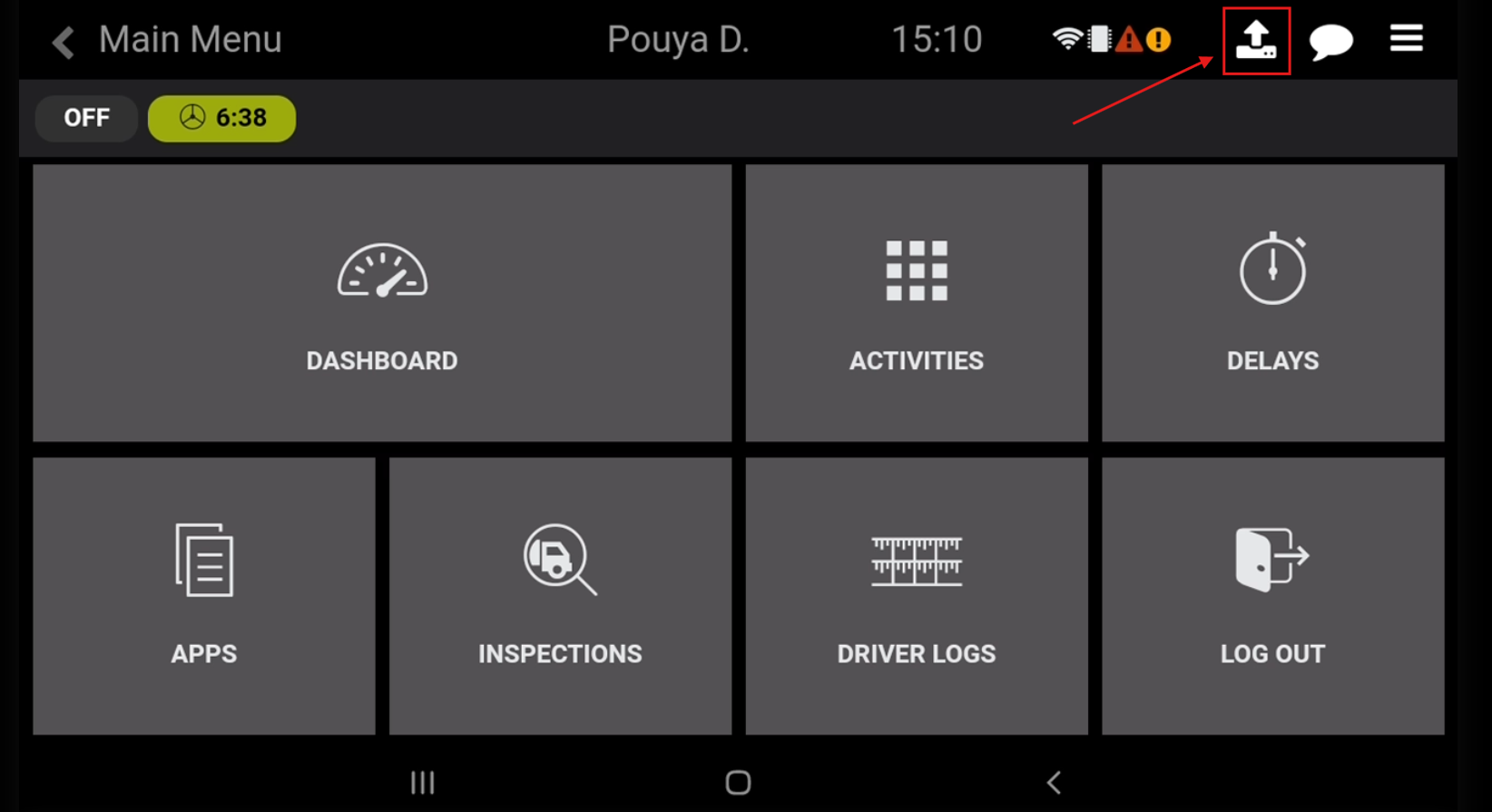

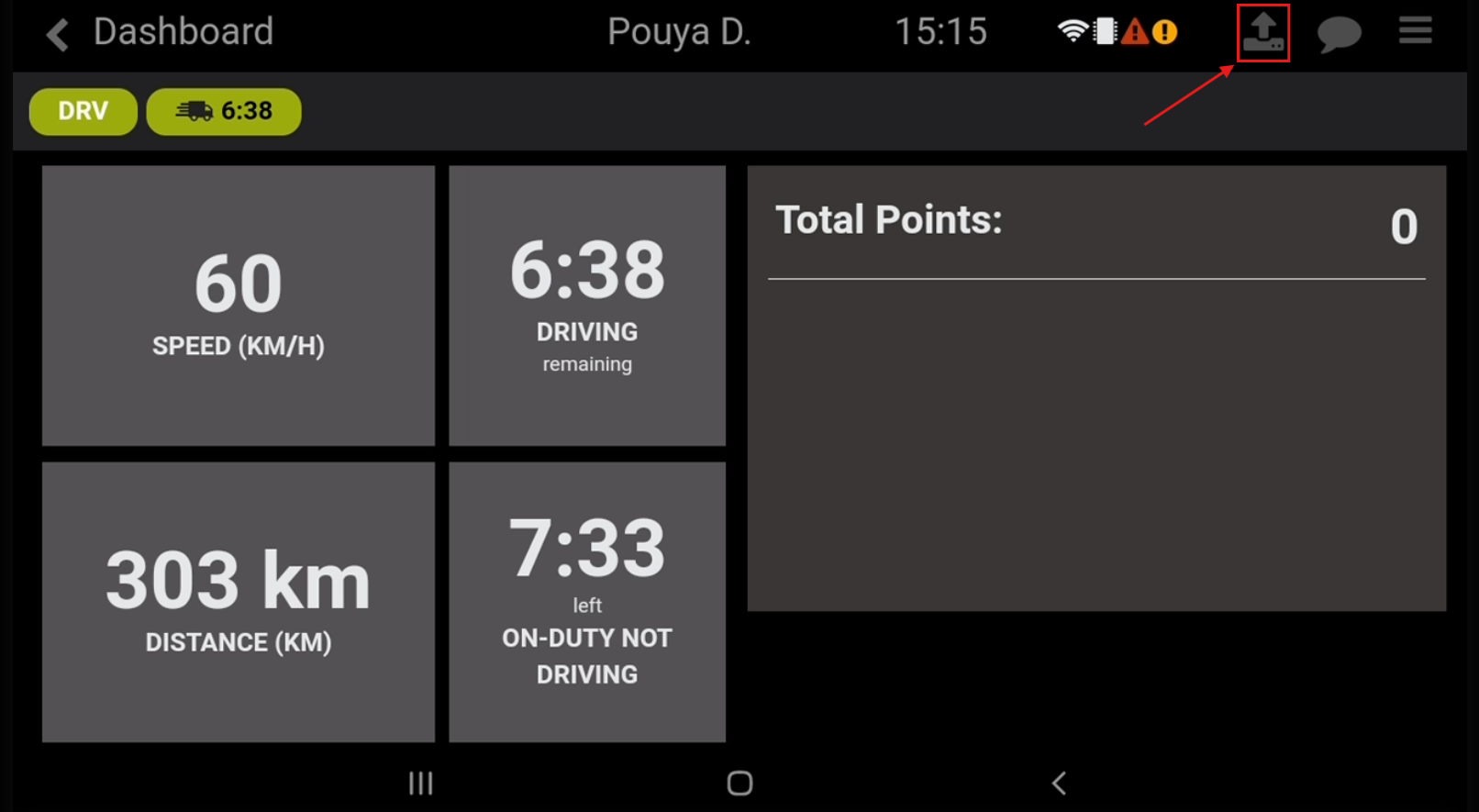

This is the ELD Data Transfer icon, you can find it on the top-right corner of the screen.

Note: this option is not available when the vehicle is moving.

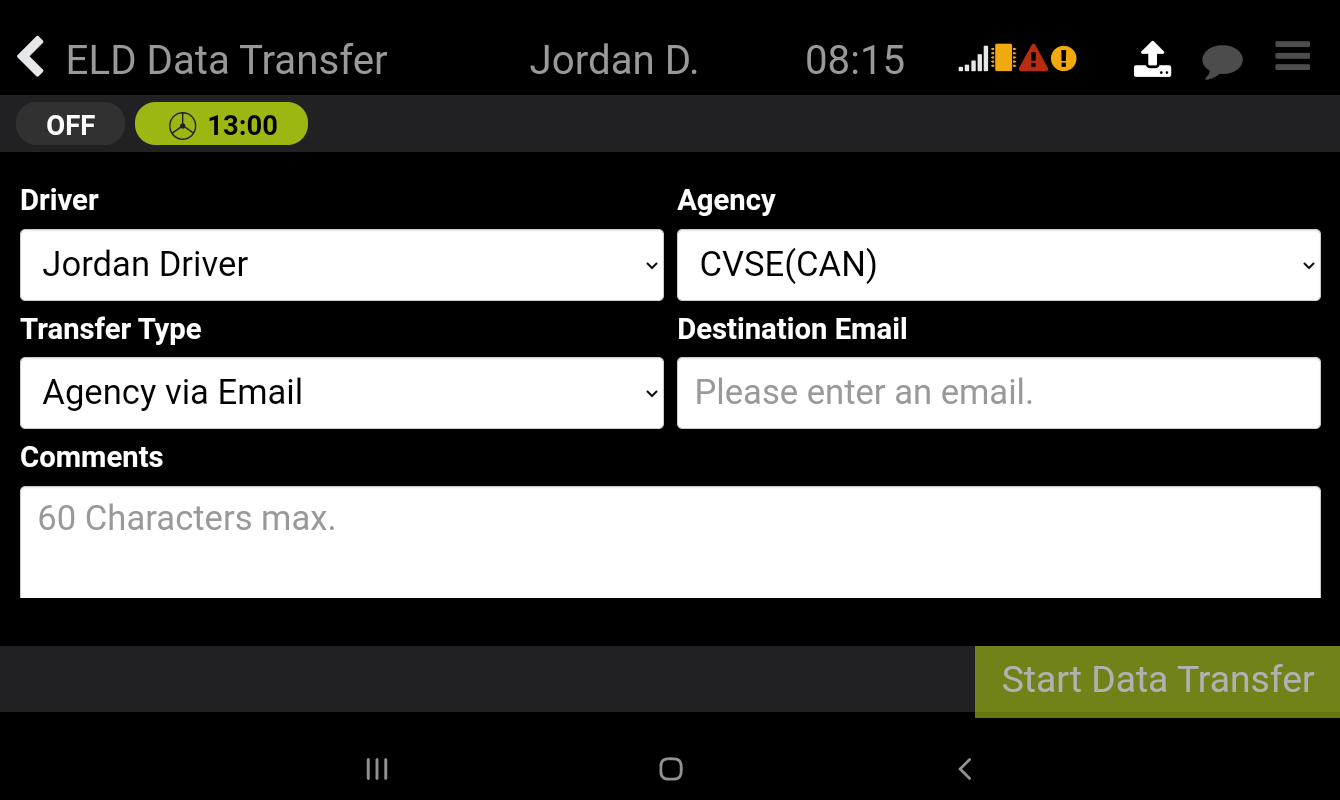

Below is an example of the ELD Data Transfer Screen

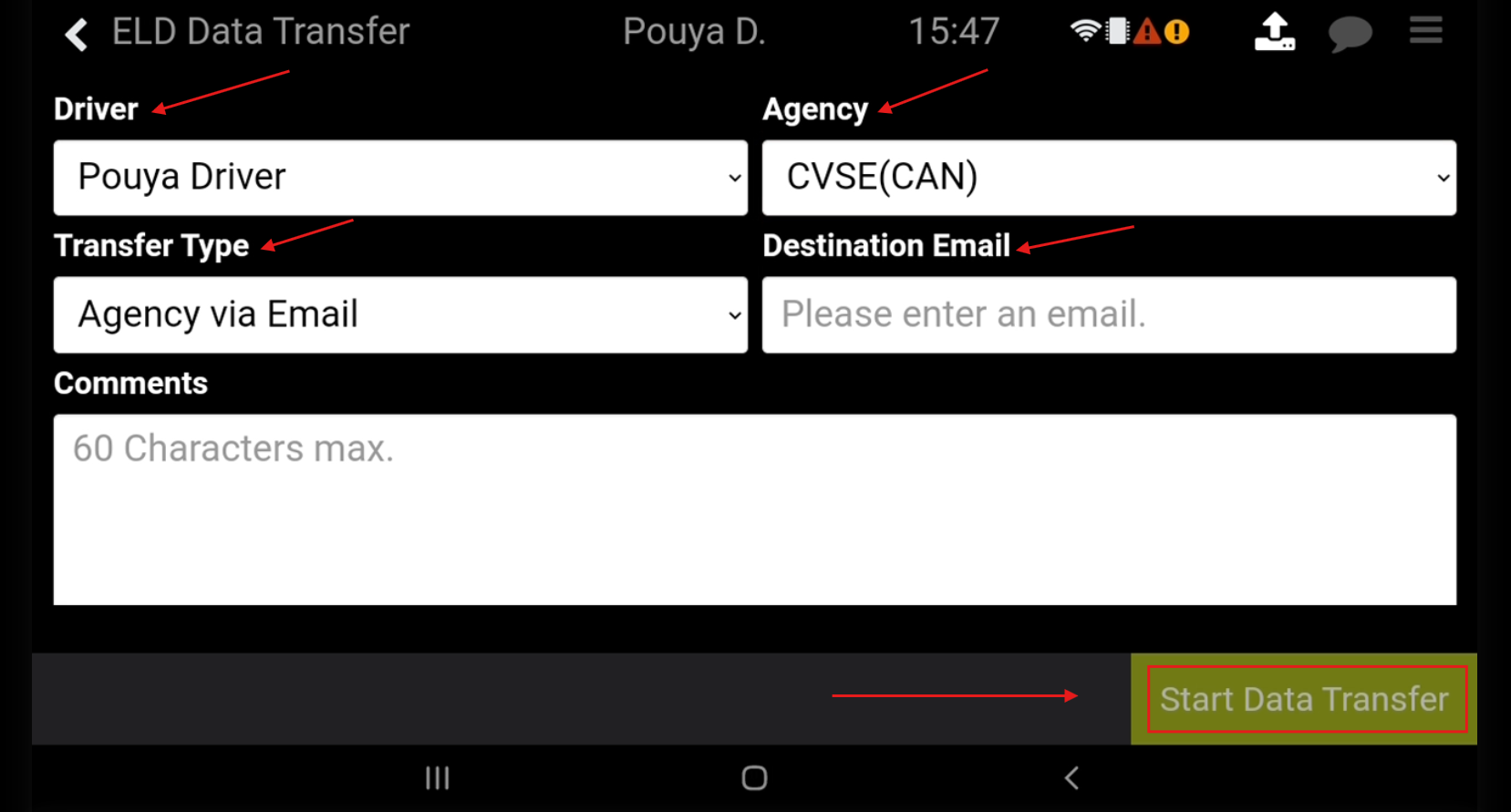

To perform a Data Transfer:


  • Touch the ELD Data Transfer icon. This opens the data transfer dialog.

  • Verify the Driver’s name of the logs you want to send is correct. Touch to change as needed.

  • Select the Agency to send to, this will either be CVSE (Canada) or FMCSA (USA)

  • Select the Transfer Type:

    • Agency via Email: Used for sending to the CVSE, or other Canadian transportation agencies

    • Individual via Email: Can be used to send to non-government agencies

    • Agency via Web: Used for sending to the FMCSA for drivers in the USA

  • Enter Comments as provided by the safety official (if specified).

  • Specify an Email Address to send to if an email transfer type is selected, if you have selected Agency via Email the email address must be a valid government email address otherwise select Individual via Email

  • When you’re ready to send, touch the  button.

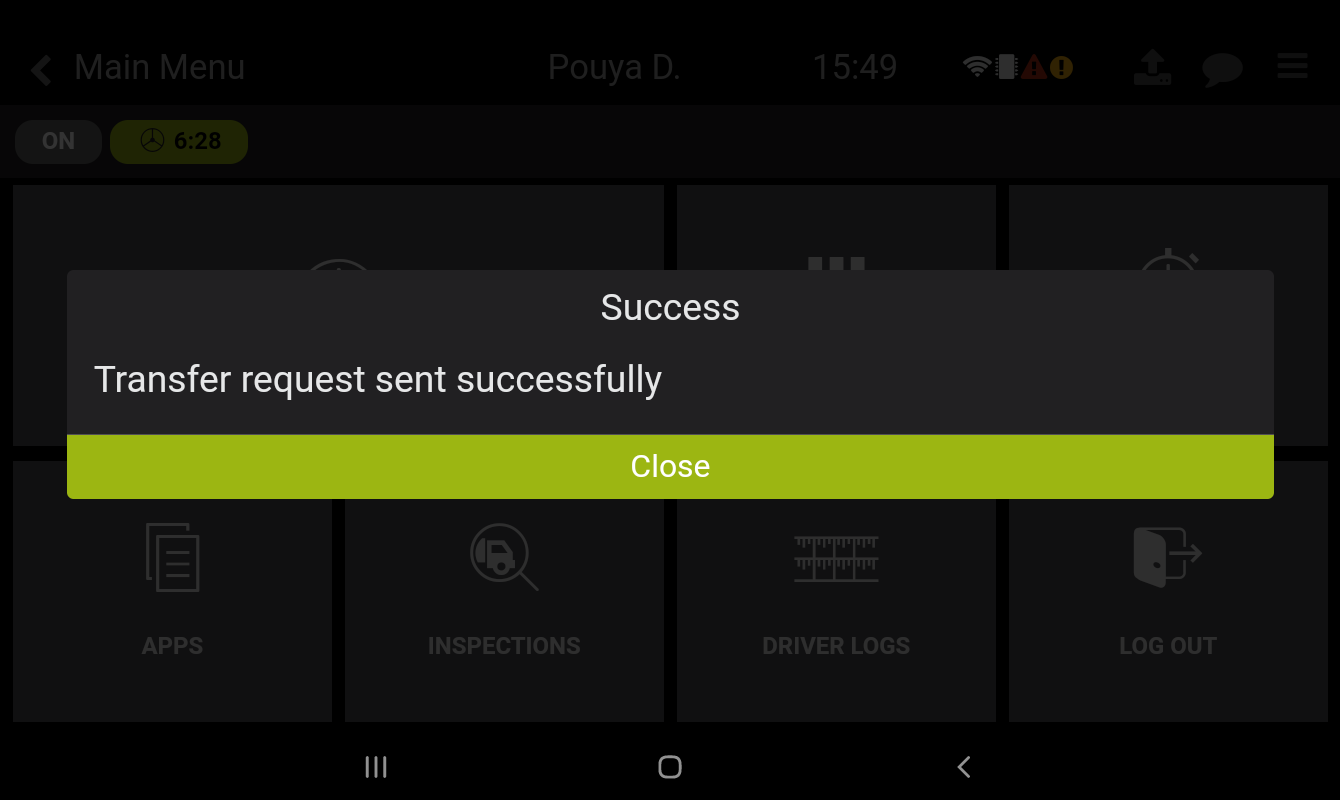

While the transfer is being completed a spinning wheel will show where the   button was. Once completed a “Transfer request sent successfully” message will appear at the top of the screen and you will be returned back to the Main Menu.


What to do in case of data transfer failure:

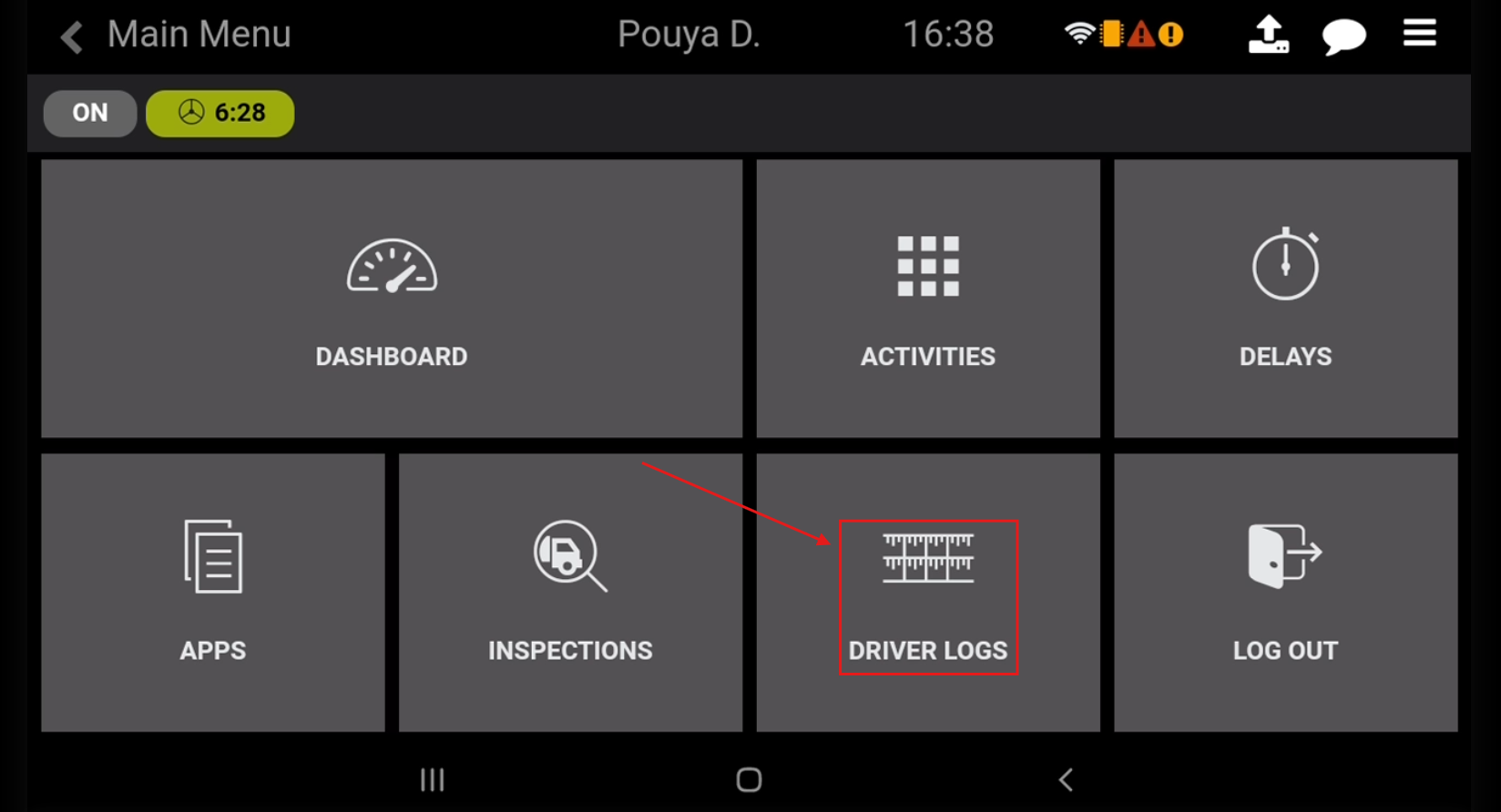

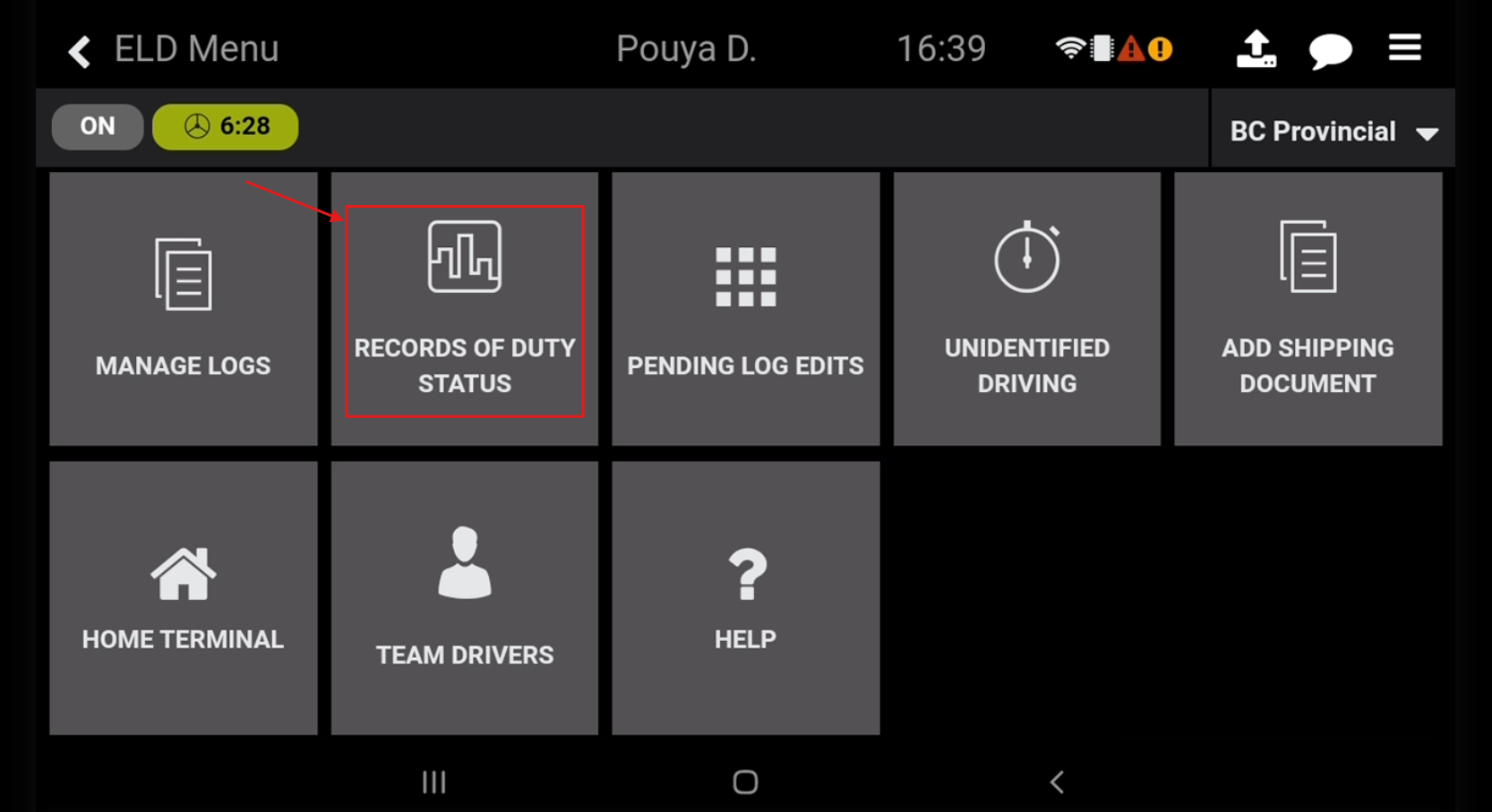

  • The data transfer needs a network (cell) connection. If the data transfer fails due to the lack of a connection, the safety official can review the ELD data via the Records of Duty Status option under Driver Logs.

  • Please contact support if you have any questions or concerns.
